PHIX Cooling Carriers
The PHIX Cooling Carrier and Cooling Carrier XL are optional add-ons to the PHIX Characterization Package and RF Characterization Package, respectively. They consist of one or two thermoelectric coolers (TECs) on a mounting base suitable for easy connection to an optical table or heatsink. The units provide cooling to the packaged photonic integrated circuit (PIC) and, in combination with a thermistor and TEC controller, it allows the PIC to be kept at a constant temperature.
PHIX Cooling Carrier
Key features
- Works in conjunction with the PHIX Characterization Package and its integrated thermistor.
- Mounting base with 2” (50.8 mm) hole pattern for mounting on optical baseplates.
- Durable thermal interface pad suitable for replacing the PHIX Characterization Package connected to the Cooling Carrier.
- Powerful TEC for up to 20W of continuous cooling power at convenient 5V operation (4A).
Support
Download the user manual for more information about the PHIX Cooling Carrier, including its dimensions, specifications of the TEC and thermistor, and TEC controller recommendations.

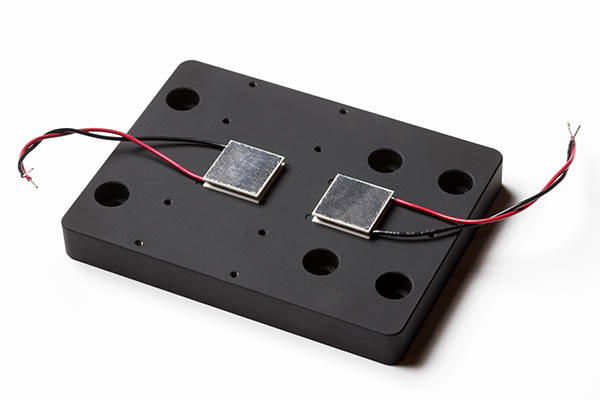

PHIX Cooling Carrier XL
Key features
- Works in conjunction with the PHIX RF Characterization Package and its integrated thermistor.
- Mounting base with 50 mm hole pattern for mounting on optical baseplates.
- Durable thermal interface pads suitable for replacing the PHIX RF Characterization Package connected to the Cooling Carrier XL.
- Two powerful TECs for up to 2x 20W of continuous cooling power at convenient 5V operation (4A).
Frequently Asked Questions (FAQ)
Can I also use the Cooling Carrier for heating the PIC?
Yes, the thermoelectric cooler can also add heat to the optoelectronic module. To do this, simply apply a negative voltage to the TEC.
